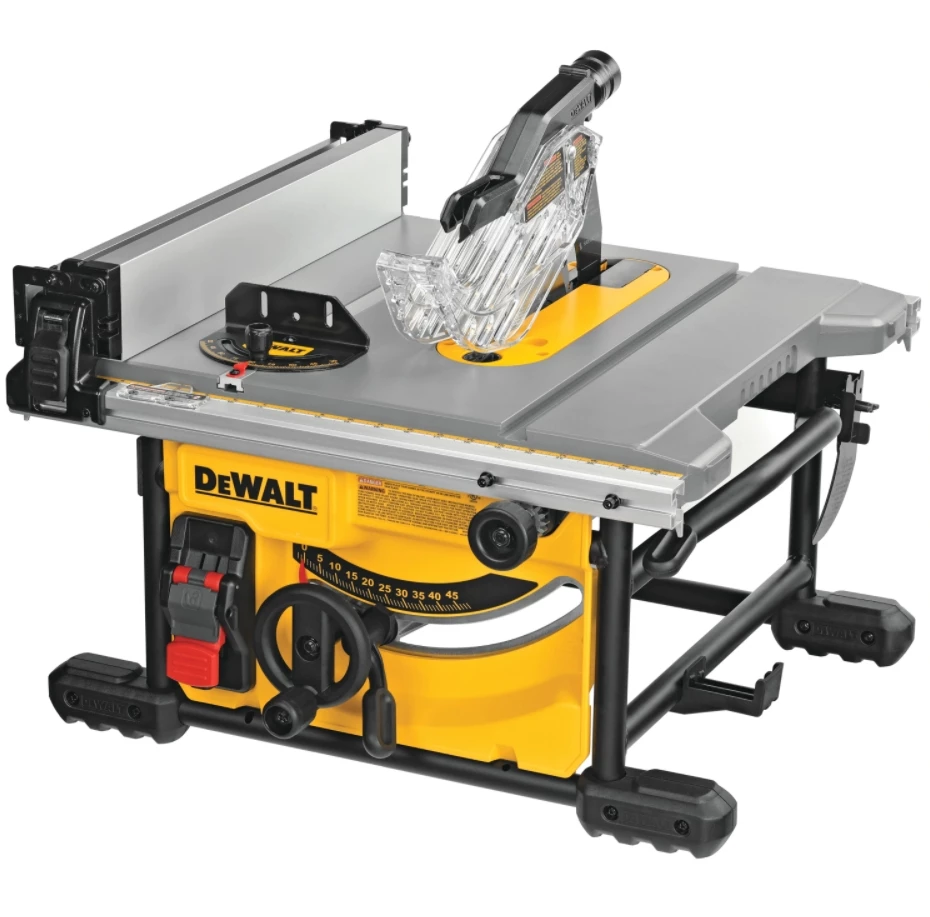

DeWALT 8-1/4 IN. COMPACT JOBSITE TABLE SAW

Maximized for accuracy and capacity, this 8-1/4 in. Table Saw includes on-board storage for the blade guard assembly, non-through cut riving knife, anti-kickback pawls, blade-change wrenches, miter gauge, and push stick. The powerful 15 Amp, 5800 rpm motor allows users to complete a majority of applications. The rack & pinion fence allows for fast, easy adjustments and provides the capacity to rip 4×8 sheet goods.

Features

• Compact size for easy transportation and storage
• Rack & pinion telescoping fence rails make fence adjustments fast, smooth, and accurate
• 24.5 in. of rip capacity for ripping 4×8 plywood or OSB sheets

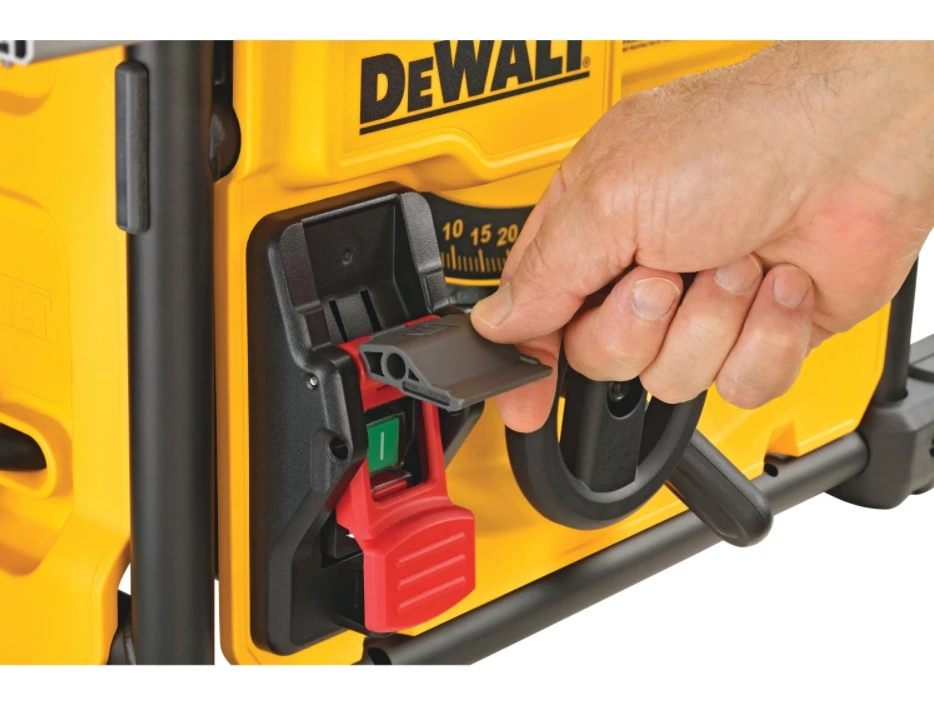

• Power-loss reset prevents accidental restarts following a power disruption when the tool is left in the on position
• Blade brake
• On-board storage for guard, fence, wrenches, and miter gauge
• Metal roll cage base for jobsite durability

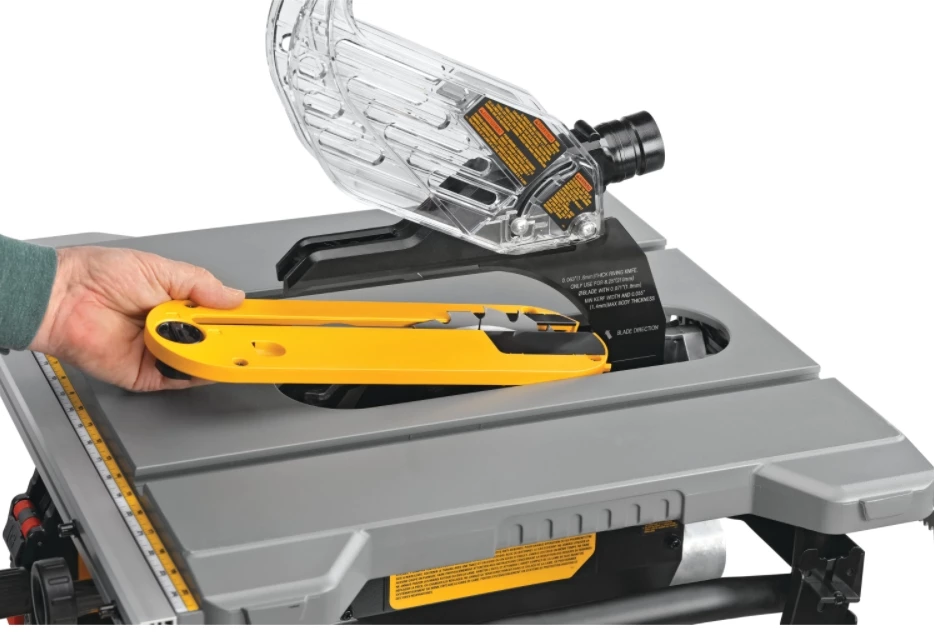

• Site-Pro Modular Guarding System allows for tool-free adjustments of the guarding

SPECIFICATIONS

• AMPS 15 AMPS



• ARBOR SIZE 5/8 IN



• BLADE DIAMETER 8-1/4″



• DEPTH OF CUT AT 45° 1-3/4 IN



• DEPTH OF CUT AT 90° 2-9/16 IN



• DUST PORT DIAMETER 2.5 IN



• FOR WOOD CUTTING TRUE



• MAX RIP TO LEFT OF BLADE 12 IN



• MAX RIP TO RIGHT OF BLADE 24.5 IN



• NO LOAD SPEED 5800 RPM



• TOOL HEIGHT 13 IN



• TOOL LENGTH 22.75 IN



• TOOL WEIGHT 46 LBS

INCLUDES

• (1) DWE7485 8-1/4 in. Table Saw
• (1) Fence
• (1) Anti-Kickback Pawls
• (1) Miter Gauge
• (1) Push Stick
• (1) 8-1/4 in. Blade
• (1) Non-Through Cut Riving Knife
• (2) Blade-Change Wrenches
• (1) Modular Guard System
